32' Pursuit S 328
$259,000 | 2017 | Newport Beach, CA
Description

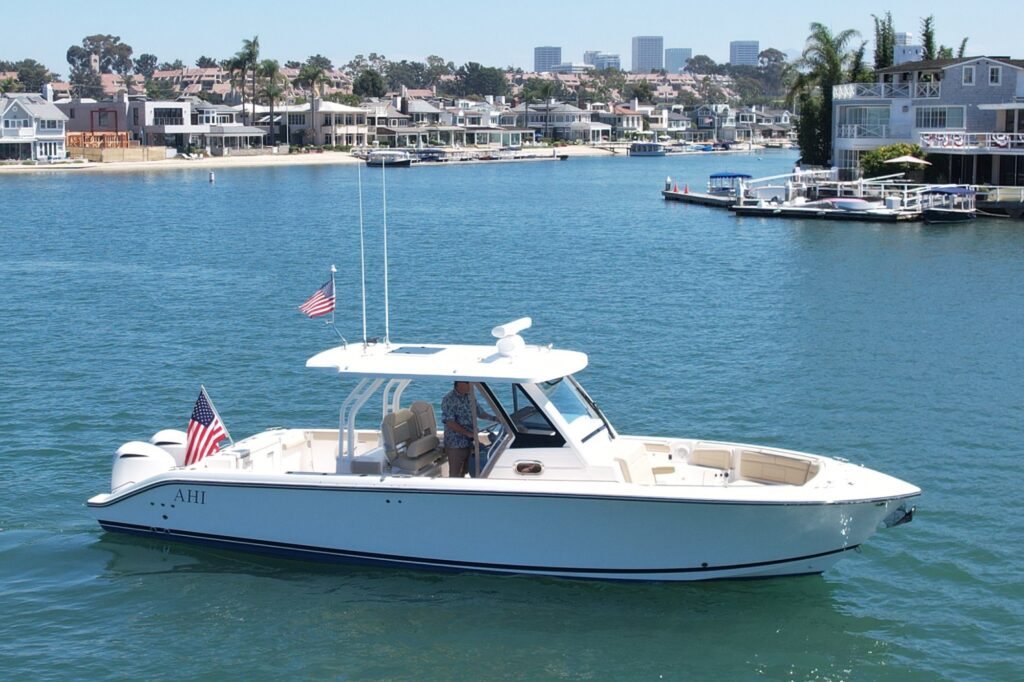

“Ahi” is a well maintained 32′ luxury center console. Whether you plan to spend the day fishing, diving or cruising, this vessel makes it easy and stylish for you to do so.
The Pursuit S 328 is an excellent addition to Pursuit’s popular Sport Series, and “Ahi” is powered by dependable and cost-effective Yamaha 300’s that match her impressive looks. The vessel comes with an oversized fiberglass integrated hardtop and windshield system, updated classic sheerline, through-stem anchor system, and integrated transom extensions.

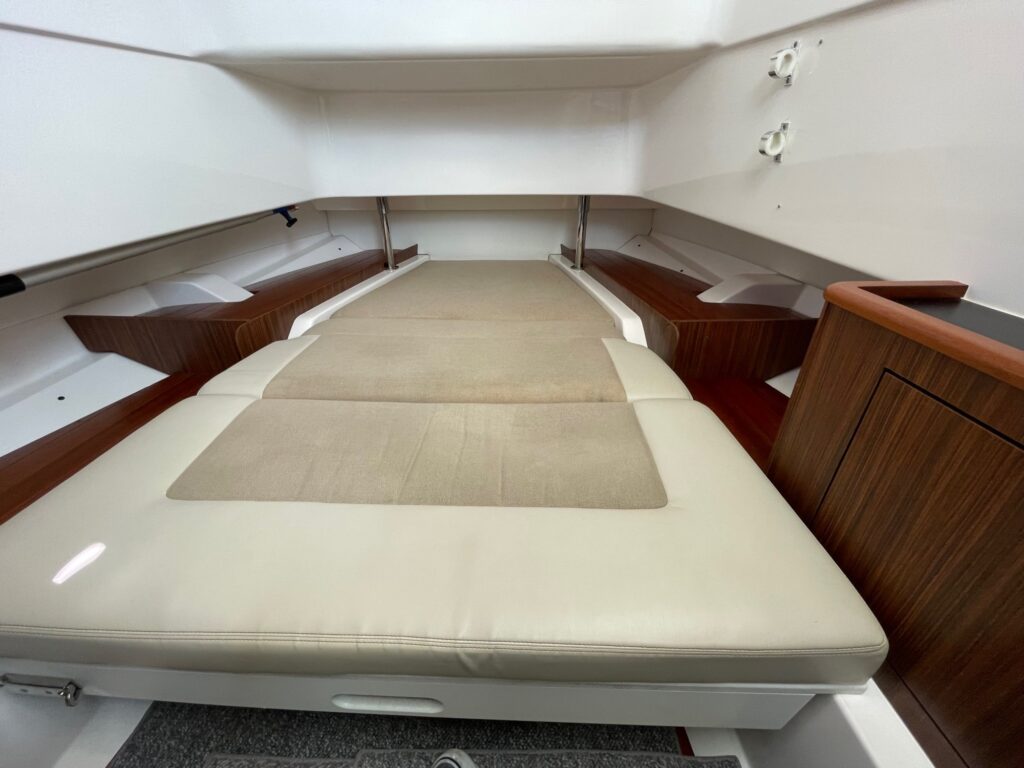

The exterior styling of “Ahi” is enhanced by a forward wrap-around lounge at the bow, opposite the forward-facing seating in the console. Below deck, a two-person berth converts into an aft-facing seat with ample open storage areas on the port and starboard sides. She also has a head and sink with a vanity that allows you to freshen up for a shore-side dinner or even stay overnight. The aft cockpit area is ideal for serious fishing, and with fold-away fore and aft seats, it quickly converts into a social area when you’re docked.
Please call us to view this great LLC OWNED Pursuit!
Contact
Chris Herman
949-673-2060
chris@wcyachts.com
Number of Engines | 2 |
Engine Type | Outboard |
Engine Brand | Yamaha |
Engine Model | F300 |
Engine power (each) | 300 |
Engine power (total) | 300 |
Engine hours (port/starboard) | 663 |
Drive Type | Outboard |
Engine/fuel type | Gasoline |
LOA | 32 ft |
Beam | 10'10" |
Maximum Draft: | 2'9" |
Dry Weight | 12,160 lbs |
Number of cabins: | 1 |
Number of heads: | 1 |
Number of Double Berths: | 1 |
Fresh water tanks | 30 gal |
Fuel tanks | 300 gal |
Holding tanks | 10 gal |
Hardtop and Windshield
- Molded Fiberglass Full Beam Hardtop
- Powder Coated Aft Structural Hardtop Supports
- Custom Tempered Glass Windshield System with Tempered Glass and Electrically Actuated Center Vent
- Custom Stainless Steel Ratcheting Anchor/Stern Light with Burgee Rings
- Four (4) Tri Color LED Lights
- Fore and Aft Facing Spreader Lights
- 316L Stainless Steel Underside Grab Rails
- Integrated Stereo Speakers (4)
- Integrated Life Jack Storage in lieu of Optional Electric Sunshade
- Hardtop Acrylic Access/Ventilation Hatch
- Molded Overhead Electronic Mounting Surface
- Fiberglass Hardtop with Dedicated Radar, Antenna and Outrigger Locations
- Horn, Dual Trumpet
Electronics
- (2) Simrad 12″ EVO touchscreen displays
- Simrad HALO Radar (Open Array)
- Simrad GPS antenna
- Simrad Autopilot
- AIS receiver
- (2) Simrad Multi displays
- Chain/Rode Counter
- Simrad RS 25 VHF Radio
Fishing Features
- Rod Holders (4), Stainless Steel, in Gunwale
- Lighted Oceana Blue 24 Gallon Recirculating Livewell with Fiberglass Lid and Acrylic Window
- Under Gunwale Rod Storage (starboard)
- Fish Boxes, Insulated and Diaphragm Pumps with Overboard Discharge (port & starboard)
- Rod Storage Under Hardtop (port & starboard)
Console and Head
- Molded Acrylic Access Door with Gasket and 316L Stainless Steel Locking Latch
- Cabin Entry Steps with Handrail and Wood Treads
- Molded Cabin Deck Liner
- Vacuum Flush Marine Head with 10 Gallon Holding Tank, Macerator Discharge Pump, 316L Stainless Steel Deck Pump-out Fitting and Bronze Thru Hull Fitting with Seacock
- Fiberglass Toilet Seat Cover
- Designer Sink with Corian® Countertop, Fresh Water Faucet and Vanity Mirror
- Dedicated Storage for Four (4) Rods, SCUBA Tanks, and Safety Gear
- Two Switch Panel with Overhead LED Lights (2) LED Floor Accent Light (1)
- Convertible Berthing Accommodations/Seating with Cushions
- Custom Solid Wood Tongue and Groove Floor Accents
- 120V Main Distribution Panel Cabinet
- 316L Stainless Steel Opening Port Lights (2) with Screens
- One 12V Outlet (1) and Dual USB Charger
- One 120V Outlet (1) with GFI Protection
- Fire Extinguisher
- CO Monitor
Electrical
- UL® Rated Fully Tinned, Color Coded Copper Wire
- Custom In-House Built, Heat Sealed, Mechanically Crimped, Color Coded Battery Cables
- Custom In-House Built, One-Piece Electrical Harness with Water Proof Connectors and Chafe Protection
- Powder Coated, Aluminum, Screen Printed (Front and Back) Battery Switch and Breaker Panel
- Bonding System: Thru Hull Fittings Below Water Line, Trim Tabs, Zinc Anode and Garboard Drain
- Four Battery System: Port Engine (1), Starboard Engine (1), House (1) (AGM), and Bow Thruster (1) (AGM)
- Single 120V 30 Amp 60 Cycle Dockside Power Connection
- One 120V 30 Amp 50? Dockside Power Cord
- Isolation Transformer
- One (1) 40 Amp Battery Charger
- One Grounding Bus Bar
- Electronics Fuse Block
- Five 12V Outlets (3) and Four Dual USB Chargers (3)
Hull
- Pursuit® Fresh White Gelcoat
- White Engine cowlings
- Hand Laminated Hull with Vinyl Ester Resin and Engineered Fabrics
- 5 Ply Resin Infused Composite Transom System with Patented Transom Reinforcement Grid
- Infused Fiberglass Structural Grid System with Molded Finish and Integrated Bilge Water Management System
- Foam Filled Structural Grid
- Bronze Thru Hull Fittings Below Water Line
- Chrome over Bronze Thru Hull Fittings Below the 7 Degree Heel Line
- Stainless Clad Composite Thru Hull Fittings Above the 7 Degree Heel Line
- Bronze Garboard Drain
- Trim Tabs, Lenco Electric with Auto-Retract
- Bow Eye, 5/8″ 316L Stainless Steel
- Stern Eyes (2), 5/8″ 316L Stainless Steel
- Integrated Transom Platform Extensions Outboard of Engines
- Boarding Ladder, 4-Step Telescopic, Mounted in Hull Platform
- Anchor System, Integrally Molded Thru-Stem
- Horn, Electric, with Oval Stainless Steel Cover
- Bow Thruster, 3.0 HP (2.2 kW) with Group 31 AGM Battery, Switch and Fuse
- Dedicated Transducer Location
- Forward Hull Compartmentation with One (1) 900 GPH Bilge Pump with Integrated Float Switch

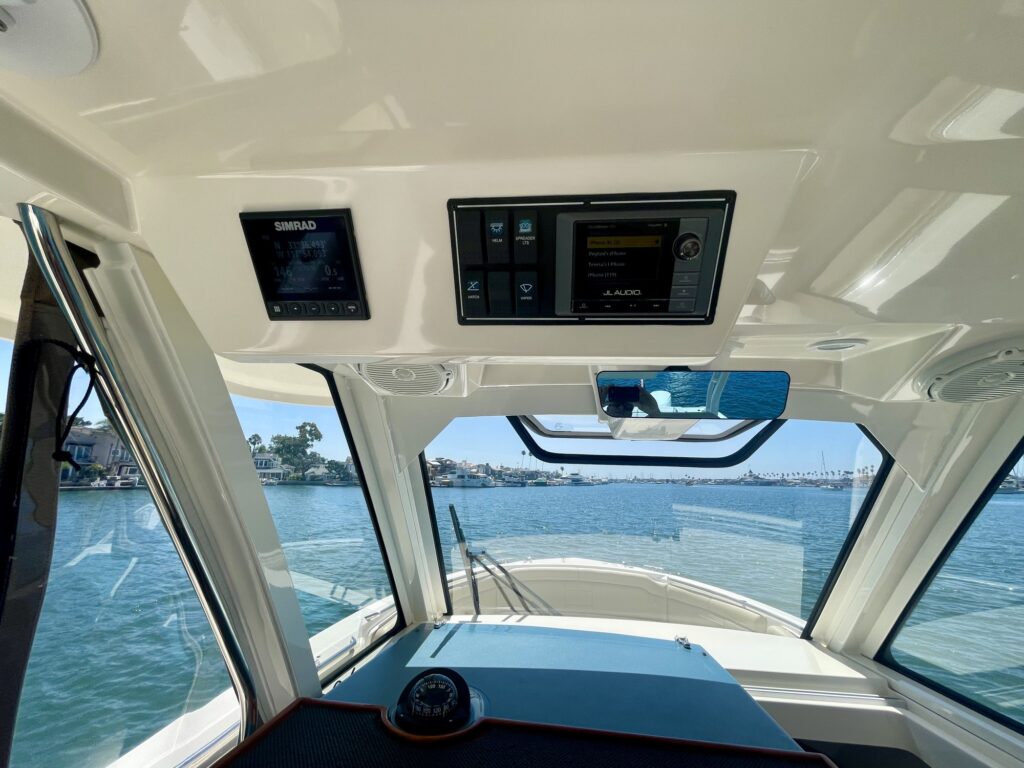

Helm
- Molded Fiberglass Aft Tilting Helm with Instrumentation Visor, Electronics Mounting Surface, Fold Out Fiberglass Footrest/Platform, and Safety Lanyard
- Custom teak helm tray
- Molded Acrylic Cabin Access Door and 316L Stainless Steel Locking Latch
- 316L Stainless Steel Steering Wheel with Control Knob and Non-Slip Grip on Sport Tilt Plus Helm
- 12V Panel with Illuminated Carling® Rocker Switches
- Single Windshield Wiper with Washer Control
- Compass
- Trim Tab Control Panel and Indicator
- Waterproof Stereo Remote with Full Function Display
- Two 12V Outlet (2) and Dual USB Charger
- 316L Stainless Steel Helm Drink Holders (2)
- Bow Thruster Joy Stick Control
- Helm Fire Extinguisher
- Yamaha® Command Link Plus Display
- Dash/Instrument Cover
Mechanical
- Molded Interior White Gel Coat
- Molded Hatch with Gasket and Stainless Steel Gas Spring
- Molded Bilge Sump Area
- One Low Profile 900 GPH Bilge Pump with Integrated Float Switch, One 1500 GPH Bilge Pump with Electronic Switch, One 1500 GPH Bilge Pump with High Water Electronic Switch and Alarm with Stainless Steel Clad Composite Thru Hull Fittings
- Fresh Water Pump with Filter
- Raw Water Pump with Sea Strainer, Sea Cock and Thru Hull Fitting
- Dedicated Fishbox Diaphragm Evacuation Pumps
- Teleflex Power Steering Pump
Fuel
- EPA Compliant Lined 150 Gallon (port & stbd) Rotomolded Fuel Tanks (2) with Engine Pickups, Shutoff Valves, Digital Level Indicator and Deck Fuel Fill Plates
- Custom Built Premium Fuel Feed Lines with Mechanically Crimped Fittings
- Two (2) Yamaha® Water Separating Fuel Filters with Primer Bulbs
Water
- 30 Gallon Water Tank and 316L Stainless Steel Deck Fill Plate
- Premium Sea Tech Color Coded Water Hose System with Mechanically Crimped Ends
- Pressure Sensing/Variable Speed Pump
- Fresh Water Distribution Manifold with Dedicated Valves
- Cockpit Shower

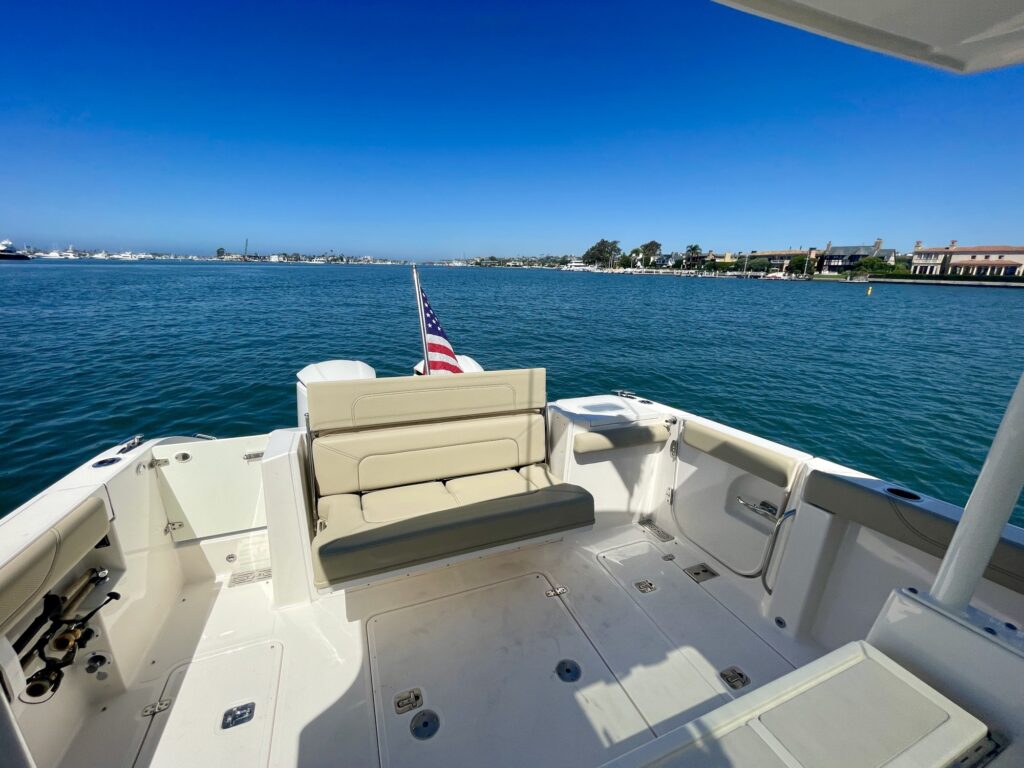

Cockpit
- Molded FRP Hull Side Dive Door with Boarding Ladder and Hideaway Handrail
- Port and Starboard Forward End Tables with Two (2) Drink Holders, 12V and USB Outlet, Forward Stereo Remote and Storage Below
- Drink Holders Located in Gunwale, Two (2)
- Custom Cockpit Upholstery with Dri-Fast Foam and Mesh Backing
- 60/40 Helm Seating Configuration with Foldable Armrests, Fore, Aft and Vertical Adjustment on Captain’s Chair and fold out footrests
- Molded Entertainment Center with Sink, Fresh Water Faucet, Insulated FRP Cooler with Corian Lid, Drink Holders(2), Cutting Board, 110V GFI Protected Outlet, Hinged Fiberglass Lids and Dedicated Storage Below
- 12V, 2.3ft3 Stainless Steel Drawer Refrigerator with 3M Protective Film
- 12V MDP
- Pursuit Cockpit JL Audio Entertainment System: 12V Bluetooth® Compatible Stereo System, Premium Speakers (7 Total, 4 in Hardtop, 2 in Bow, and Subwoofer), Amplifier and Zonal Remotes (2)
- Folding Aft Facing Seat with Adjusting Backrest
- Folding Transom Seat with Adjusting Backrest
- Custom Fiberglass Cockpit Tables (2) with Dedicated Storage
- Cockpit Machinery Access Hatch
- Bridge Machinery Access Hatch
- Fresh Water Wash with Chrome over Brass Pull out Sprayer and Quick Fittings
- Raw Water Outlet in Cockpit with Quick Connect Fittings and 25′ Hose
- LED Cockpit Accent Lights (7) with Water Proof Switch in Cockpit
- Mid Level LED Accent Lights

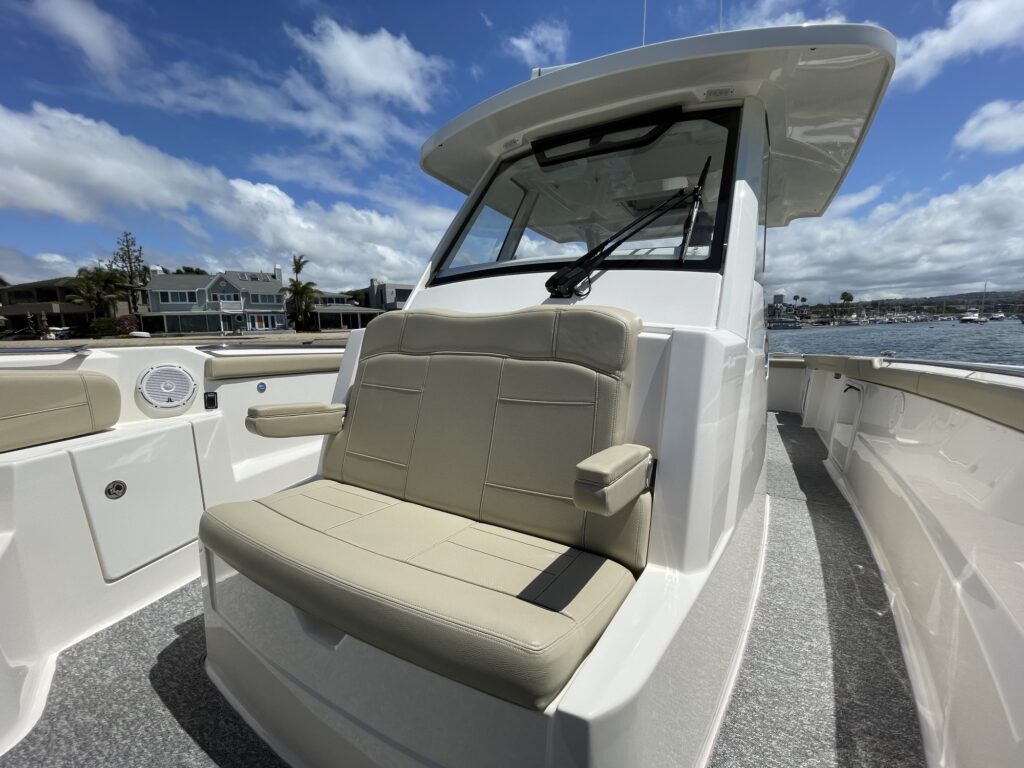

- Forward Facing Seat on Front of Console with Armrests

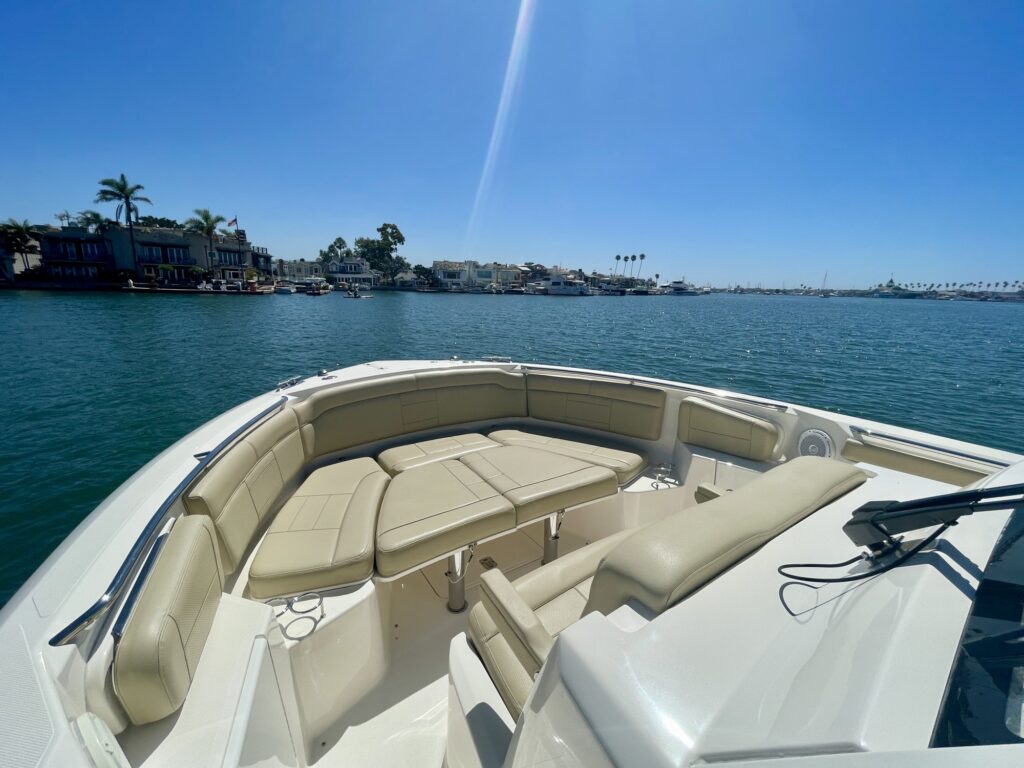

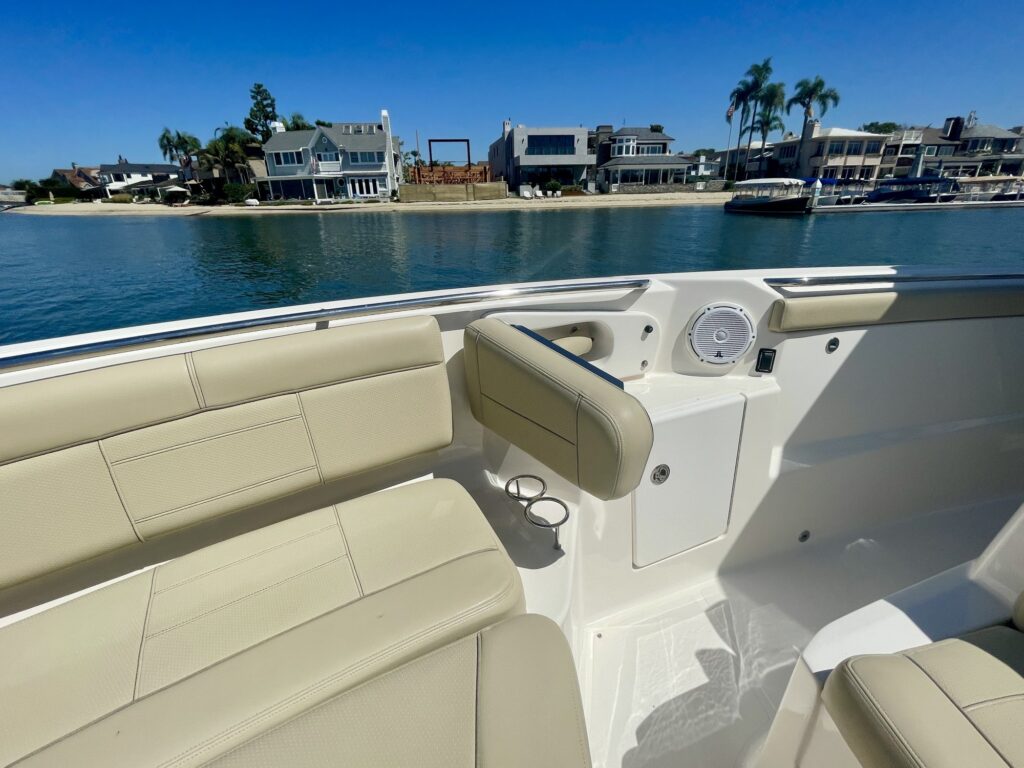

- Molded Forward Bow Seating with Insulated Storage Below, Electric Hinged Forward Facing Backrests for Port and Starboard Seats
- Bow Tonneau Cover, Sunbrella®
- Helm & Companion Seat Cover, Sunbrella®
Deck
- Hull and Deck Joint Mechanically Fastened
- Rub Rail: High Density PVC with Solid 316L Stainless Steel Insert
- Molded One Piece Deck and Cockpit Liner with Non-Skid Pattern Area
- Flush Mounted Integral Anchor Locker with Fiberglass Lid including: Horizontal Anchor Windlass with Switch at Helm and Remote at Anchor Locker 316L Stainless Steel through Stem Anchor Roller with 8″ Mooring Cleat, Chain Binder, 22lb Stainless Steel Plow Style Anchor, Self-Righting Shackle and 240′ 8 Plait Rode & 40′ Chain
- Cleats, 316 Stainless Steel, 10″ Pop Up (2) Stern, (2) Spring and (2) Bow
- Molded Recessed Hatches with Gaskets and 316L Stainless Steel Latches and Overboard Drain Tracks
- Molded Transom Walkthrough with Hinged Transom Door, 316L Stainless Steel Latch and Magnetic Catch
- Self-Draining Cockpit with Bronze Ball Valve at Hull Side
- Bow Grab Rails, 316L Stainless Steel (port & starboard)
- Transom Grab Rails, 316L Stainless Steel, (port & starboard)
- Molded Non-Skid Steps in Splashwell for Athwartship Access
- Navigation Lights, LED, 2 mile
Disclaimer: West Coast Yachts offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.
